Description

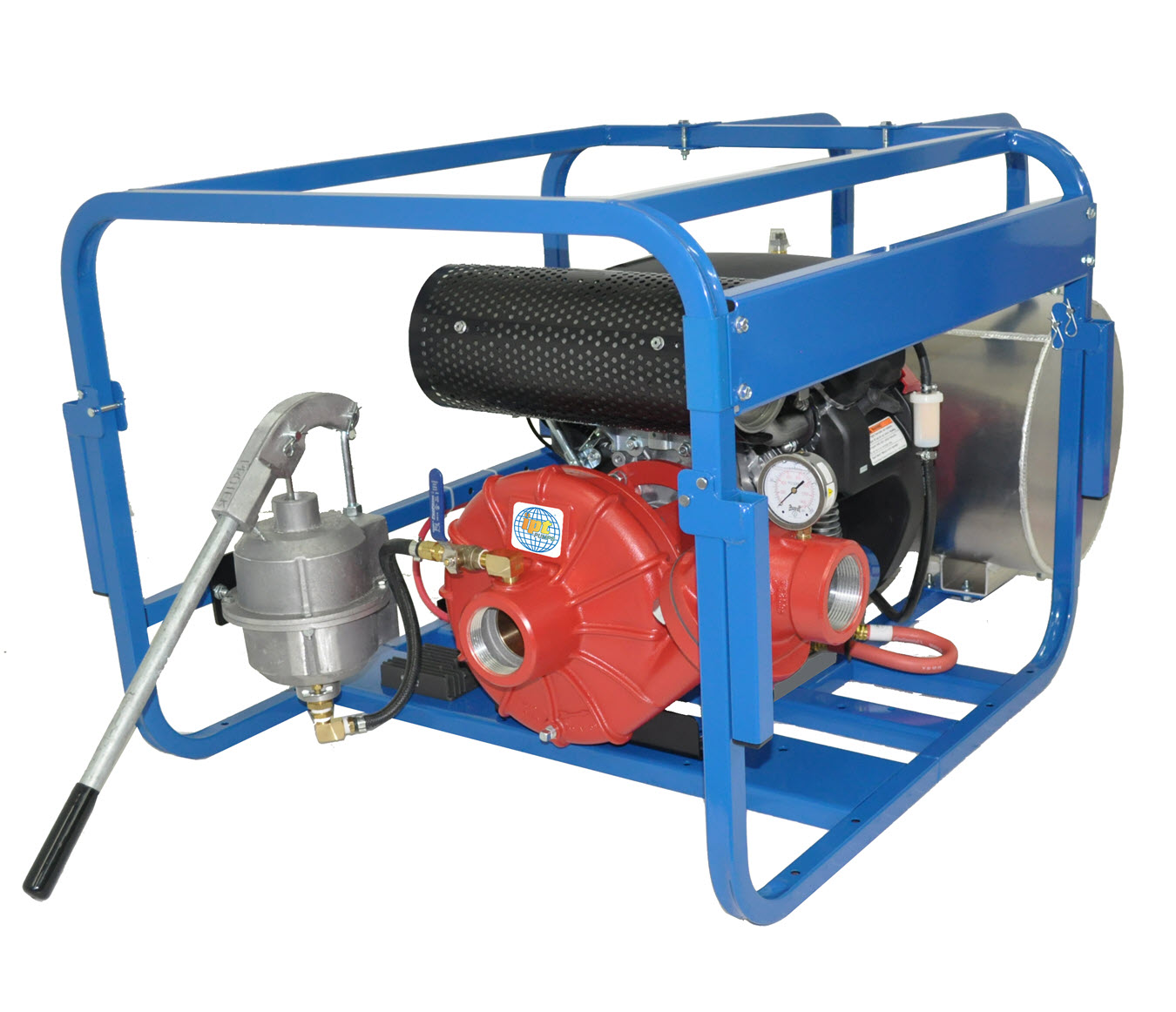

The IPT Engine Driven line of High Pressure/Fire pumps deliver excellent pressure and flow for use in many applications including: fire protection, emergency fire fighting, washdown and AG/Sprinkler. Portable units feature metal fuel tanks installed on engine or frame depending on model. 12 Volt DC electric start engines with recoil starter from Honda Gasoline or Hatz Diesel engines are standard on these pumps. Honda and Yanmar models feature a manual hand prime. These pumps are equipped with Viton® Silicon Carbide/Carbon seal and Viton® O-rings/gaskets.
• Aluminum Construction with Replaceable Hard Coat Anodized Wear Ring
• Viton® Mechanical Seal with Silicon Carbide & Carbon Faces
• 2-1/2˝ NPT Port Sizes
• Includes Hand Primer
• Prime Assist to 19 Ft.
• Built-in Discharge Check Valve
• Discharge Pressure Gauge Included
• Suction Strainer, Nipples and Heavy Duty Steel Roll Frame with Battery Tray Included
• Maximum Head up to 165 PSI/ 380’ TDH
• Delivers to 270 GPM
• Available with Honda Gasoline or Hatz Diesel with 12 Volt DC Electric Start
• Optional NPT to Fire Hose Thread Available – See Accessories Page
• Optional Wheel Kit Available
