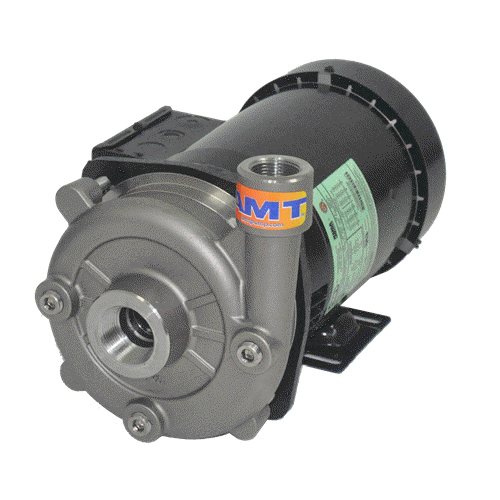

Straight Centrifugal Pumps (NEW 2021)

RESOURCES:

Download Spec Sheet

Download Price Sheet

Download Owners Manual

Models: (See spec sheet for more info)

5022-95 5022-98
5023-95 5023-98
5020-95 5020-98
5021-95 5021-98
5032-95 5032-98
5033-95 5033-98
5030-95 5030-98
5031-95 5031-98

NOTE: Product images are a representation only and AMT reserves the right to discontinue any model or change specification at any time without incurring any obligation.

Category: SKU: 5023-98

Description

AMT Straight Centrifugal Pumps are designed for continuous-duty OEM, Industrial/Commercial and Processing applications including dirty water circulation, liquids containing particles and solids up to 1/8” diameter for chemical processing and liquid transfer.

These straight centrifugal heavy duty industrial pumps are available in a variety of Construction and seal materials to meet your specification. Pull from rear design for easy servicing without disturbing piping, in addition to a two piece impeller for easy clean out. Pumps are closed coupled to Totally Enclosed Fan Cooled (TEFC) motors. Pumps are not self-priming and require flooded suction.



• 300 Series Investment Cast Stainless Steel and Cast Iron Construction with Stainless Steel Impeller
• Viton®/SIC Mechanical Seal and VIton O-Rings
• 2 Piece Impeller allows for Easy Servicing and Cleanout
• Optional EPR/EDPM Seals Available
• Discharge Port Rotates in 90° Increments
• 502 Series: 1-1/4˝ x 1˝ Ports
• 503 Series: 1-1/2˝ x 1-1/4˝ Ports
• (3) Front Drain Plugs
• Maximum Flow 156 GPM
• Maximum Head 127 Ft. (55 PSI)
