Description

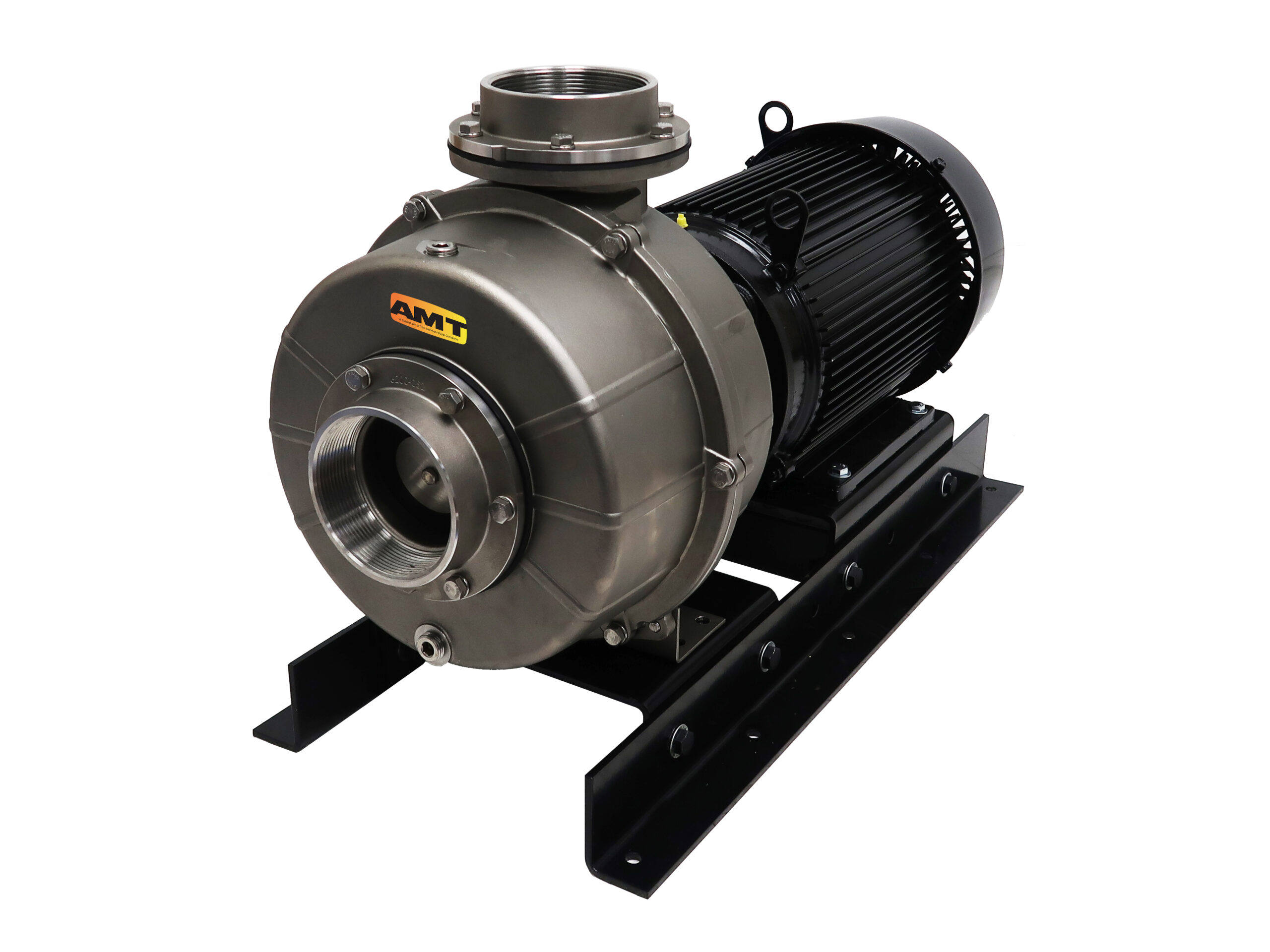

The AMT Stainless Steel Self-Priming Pumps are designed for a broad range of high-capacity applications, including dewatering, liquid transfer, chemical transfer, circulation, and drainage applications. These units have a stainless-steel casing, bracket, seal plate, removable volute, and a clog resistant semi-open impeller. Pumps are designed to handle liquids with solids contents up to ½” spherical solids for our 3” models and ¾” spherical solids for our for 4” models. Built-in check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing.
• Cast Stainless Steel Construction
• Viton Mechanical Seal w/Carbon/Carbide Faces
• Optional Silicon Carbide Seal Available
• 3” or 4” NPT Suction/Discharge Ports
• Fill and Drain Plugs for Easy Servicing
• Maximum Temperature 200°F
• Maximum Head up to 120’ TDH (52 PSI)
• Maximum Flow up to 620 GPM
• Semi-Open Impeller with Spherical Solids Handling up to
• 3” Models up to 1/2”
• 4” Models up to 3/4”
• Built-In Viton Flapper/Check Valve Permits Self-Priming up to 20’
• 5 to 15 Totally Enclosed Fan Cooled (TEFC) Single and Three Phase Motors
• Maximum Working Pressure up to 100 PSI
• Optional Mounting Base Available (A200-90) available on all models
